DLP-RFID1
*LEAD-FREE*
OEM Version
FEATURES :
? ISO 15693, 18000-3, Tag-it? HF-I Compatible
? Read UID/SID of Up to 15 Tags Simultaneously
? 13.56MHz Reader/Writer
? Built-in Antenna: Up to 4-Inch Read Range
? FCC/IC/CE Modular Approval in Place
?
Permanent Unique Serial Number Accessible Via USB
? Integrated Pass/Fail Beeper
? USB Port Powered from Host PC (USB 1.1/2.0 Compatible)
? USB Drivers Provided for Windows XP, XPx64, Server2003, 2000, 98, ME
? Software Development Library Support for Visual
C++/Visual Basic
APPLICATIONS :
?
?
?
?
?
?
?
Real-Time Security
Personal Identification
Pharmaceutical Tracking
Inventory/Asset Management & Tracking
Library/Book Management & Tracking
Baggage Tagging
Sports Event Timing
1.0

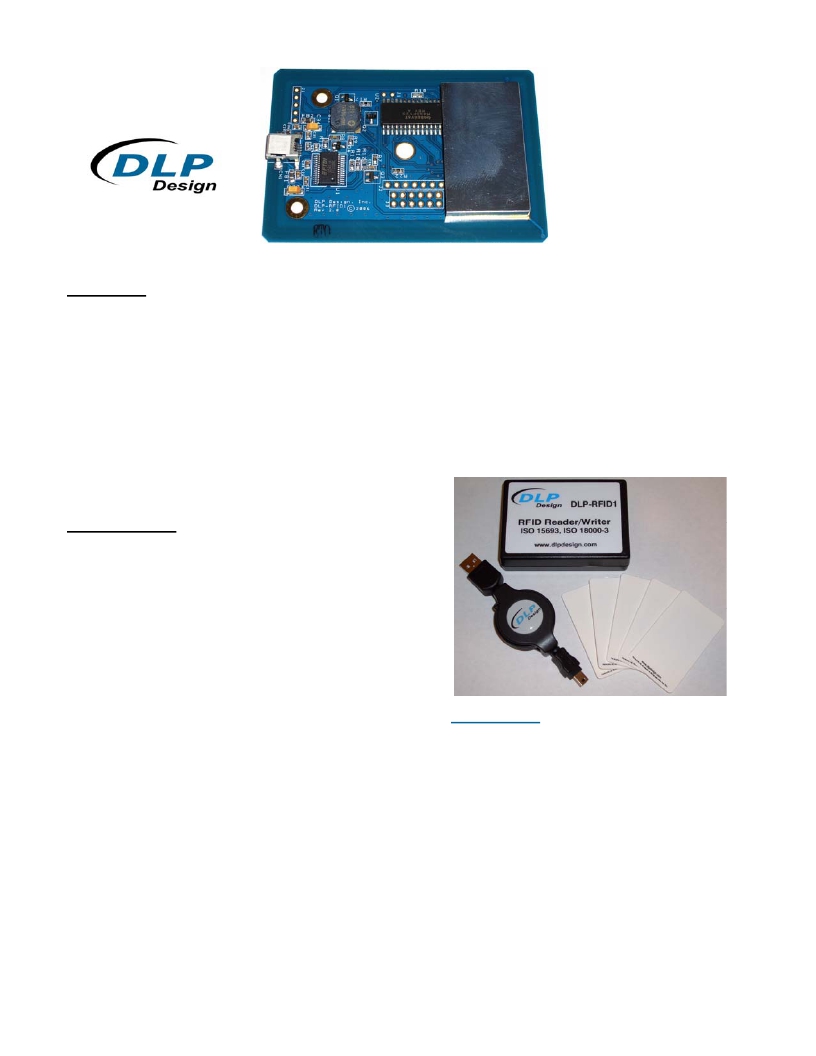

INTRODUCTION
Retail Version : Includes reader, retractable
USB cable and five peel & stick RFID tags
The DLP-RFID1 is a low-cost, USB-powered module for reading from and writing to ISO 15693, ISO
18000-3, and Tag-it? intelligent RFID transponder tags. It has the ability to both read and write up to
256 bytes of data in addition to reading the unique identifier (UID/SID). All of the DLP-RFID1’s
electronics and antenna reside within the compact unit, and all operational power is taken from the host
PC via the USB interface. The range of the internal antenna is up to 4 inches depending upon the size of
the tag being read.
Rev 1.2 (May 2007)
1
? DLP Design, Inc.
